The Assault ST Project

Postby Umlungu » Sat Aug 24, 2013 7:34 pm

Hi Guys

Great to be here amongst you enthusiasts!

Here is a some of the things that have been done to my 'ST' at a slow pace.

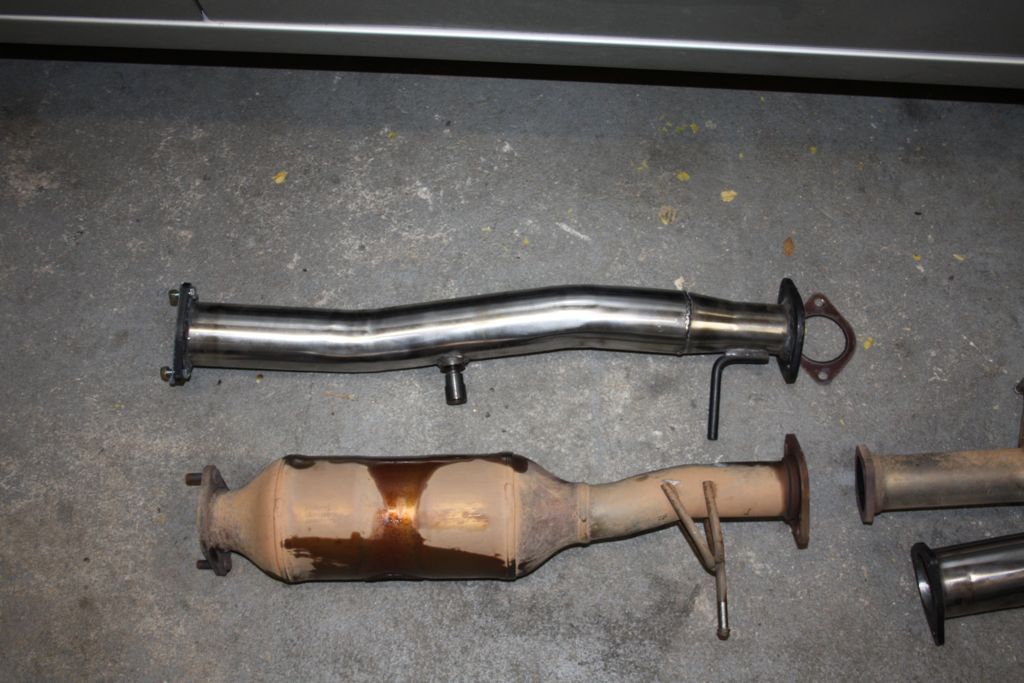

Downpipe and Decat was done

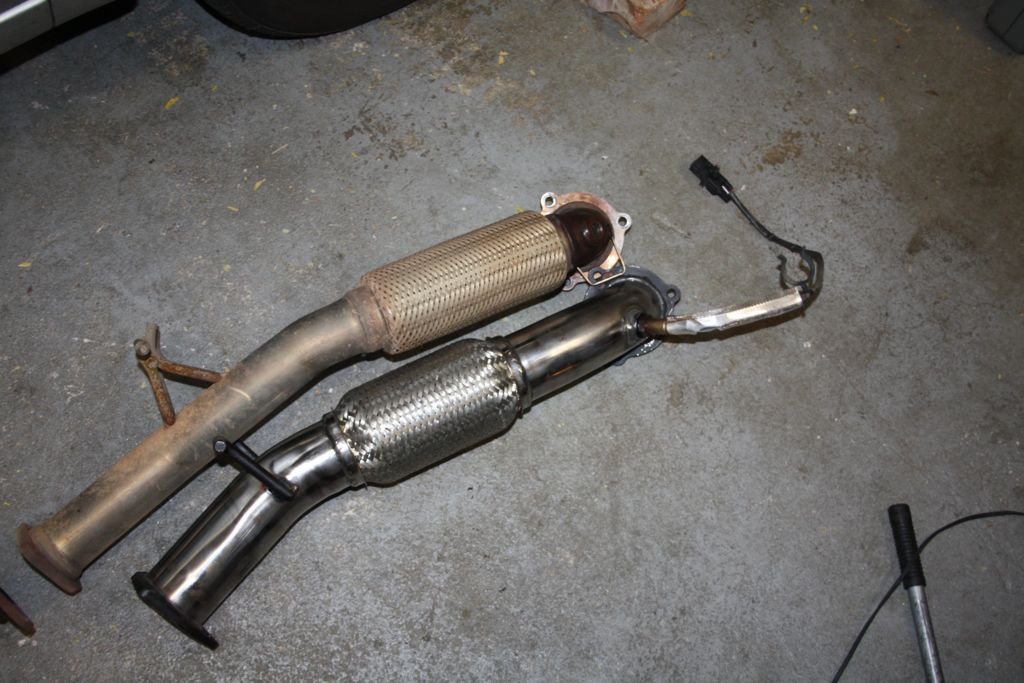

76mm Downpipe Below
76mm to 57mm Decat Pipe
Mini Catalytic Converter / Lambda Checksum Fooler

Power Graphs to follow of the gains achieved on stock software with the Downpipe/ Decat
For all your Performance Accessories visit:
Visit http://www.performanceproducts.co.za/
Performance Products SA

+
User avatar
Posts: 887
Joined: Sun Mar 27, 2011 8:19 pm
Location: Benoni, JHB
Make: Ford
Model: Focus
Type: White ST225
Year: 2009

Re: The Assault ST Project

Postby Umlungu » Sat Aug 24, 2013 8:43 pm

As the distributor or Devilsown Water Methanol Injection systems of SA, I do have access to a lot of nice stuff.
I occasionally have stuff that was rubbed and damaged during shipping from USA.
So these things sit around gathering dust and I usually just sell them at a major discount or in this case.... it goes on my car.
The tank and pump are some of those things....otherwise everything else is brand new.

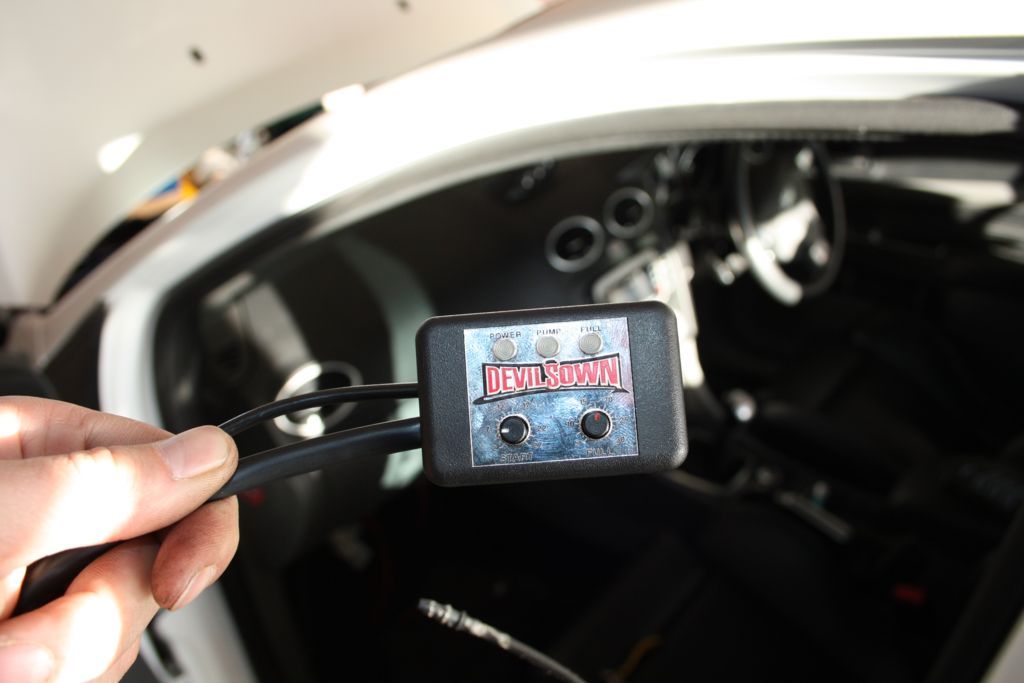

The Devilsown DVC30 Controller with built in MAP sensor

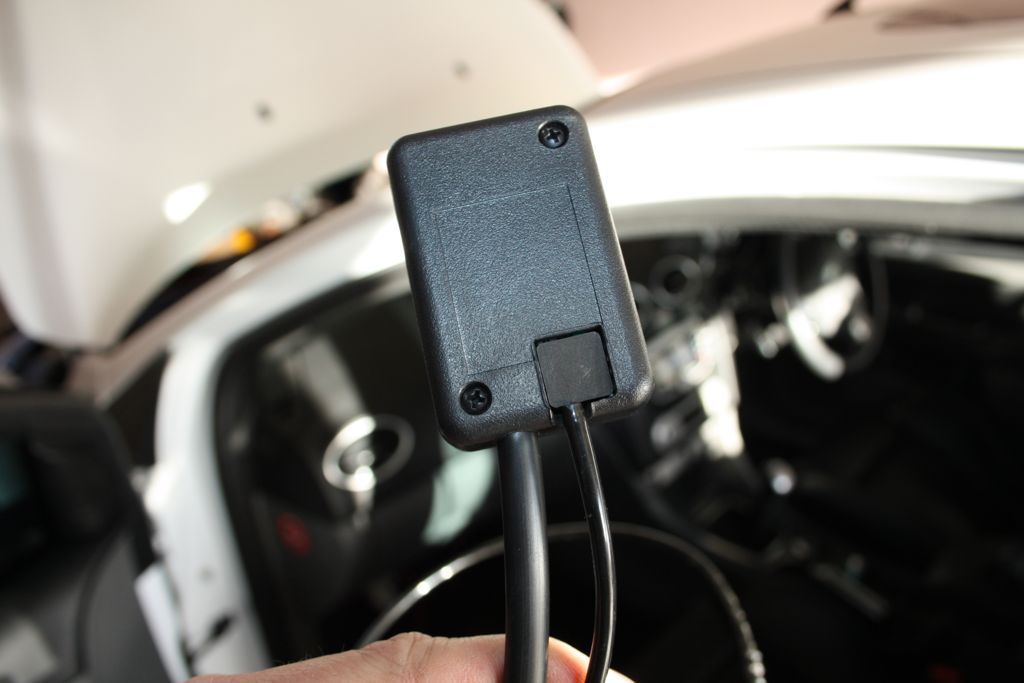

Pipe pushed on correctly on the controllers built in MAP sensor(using a pocket lighter and heating the pipe up prior to pushing it on)

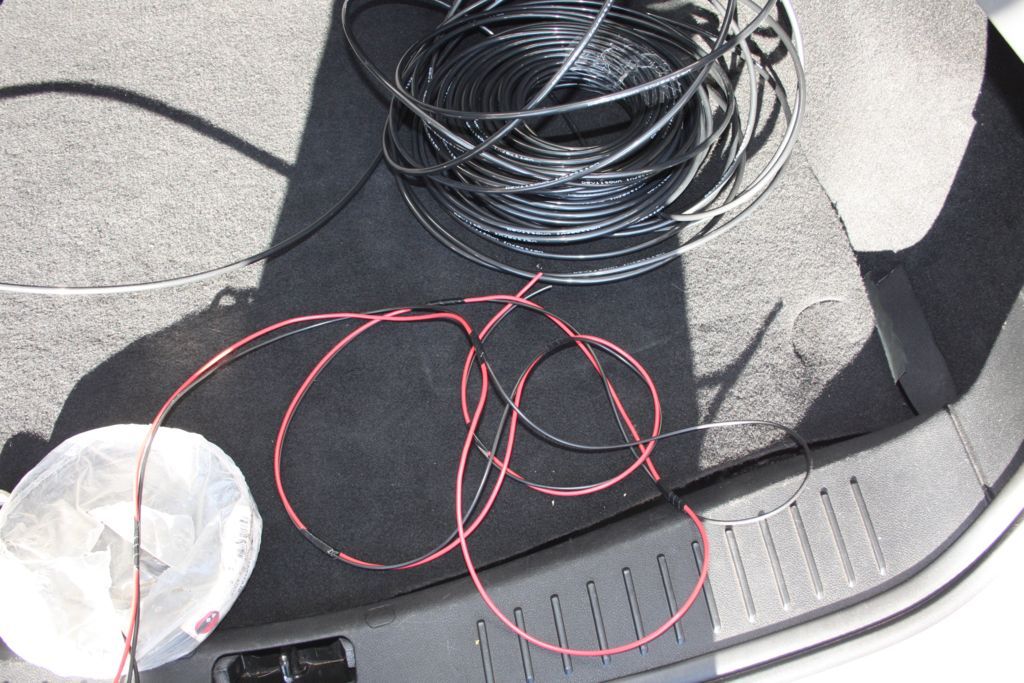

1.5mm Wiring and Devilsown Piping preperation prior to install in the boot

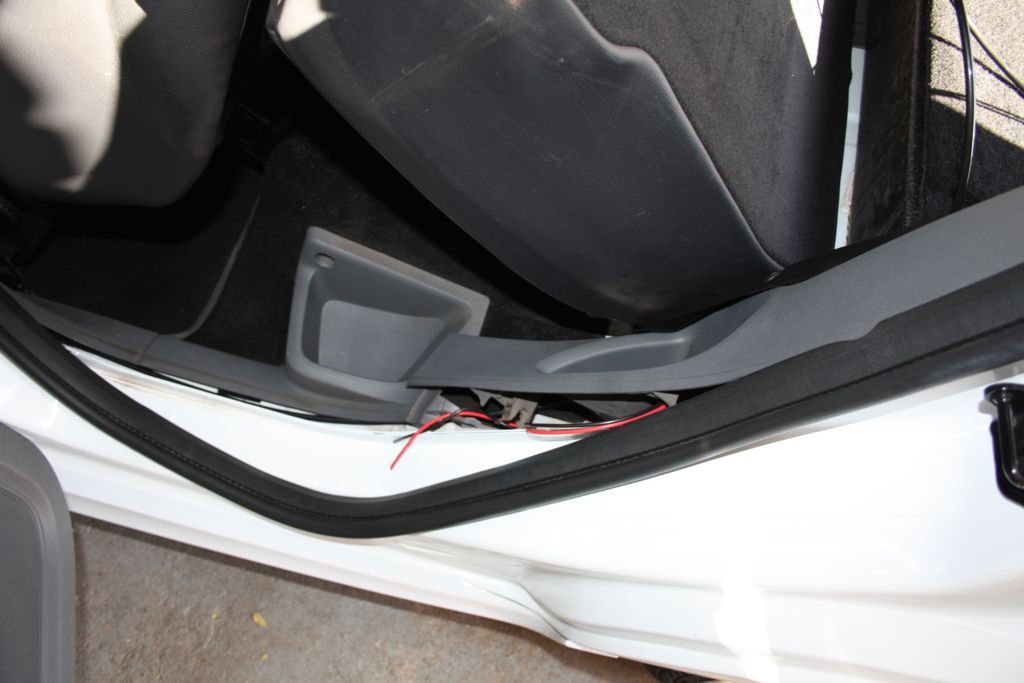

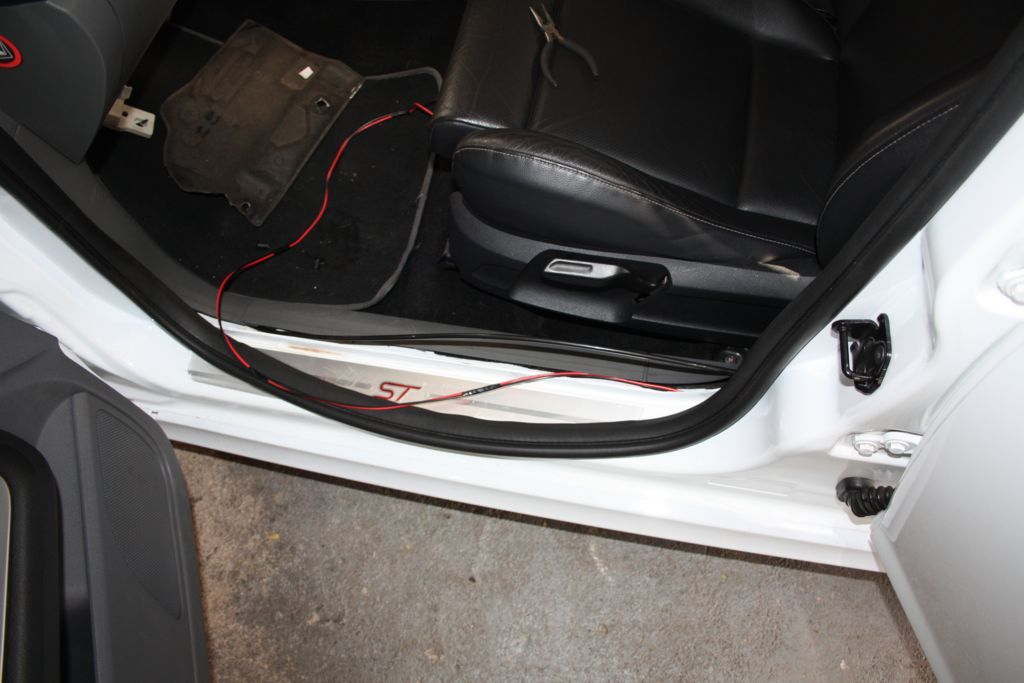

Installing the Pipe and wiring to the Tank and Pump by the rear door.
Note that the covers were not removed, the pipe was pushed/fed through.


Installing the Pipe and wiring to the Tank and Pump by the front passenger door
Note that the covers were not removed, the pipe was pushed/fed through.

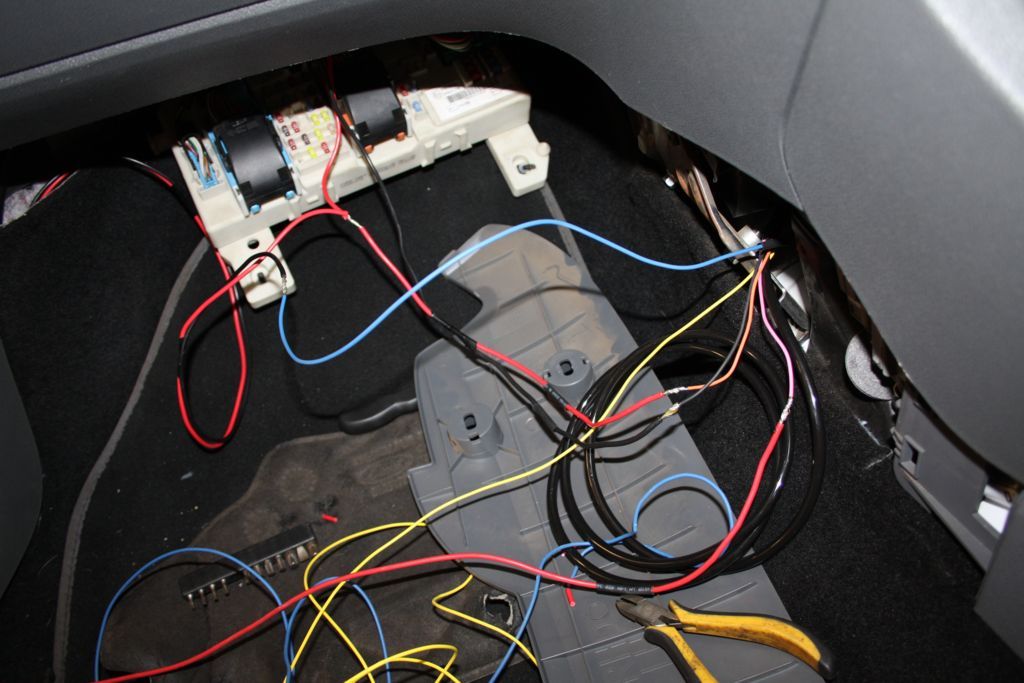

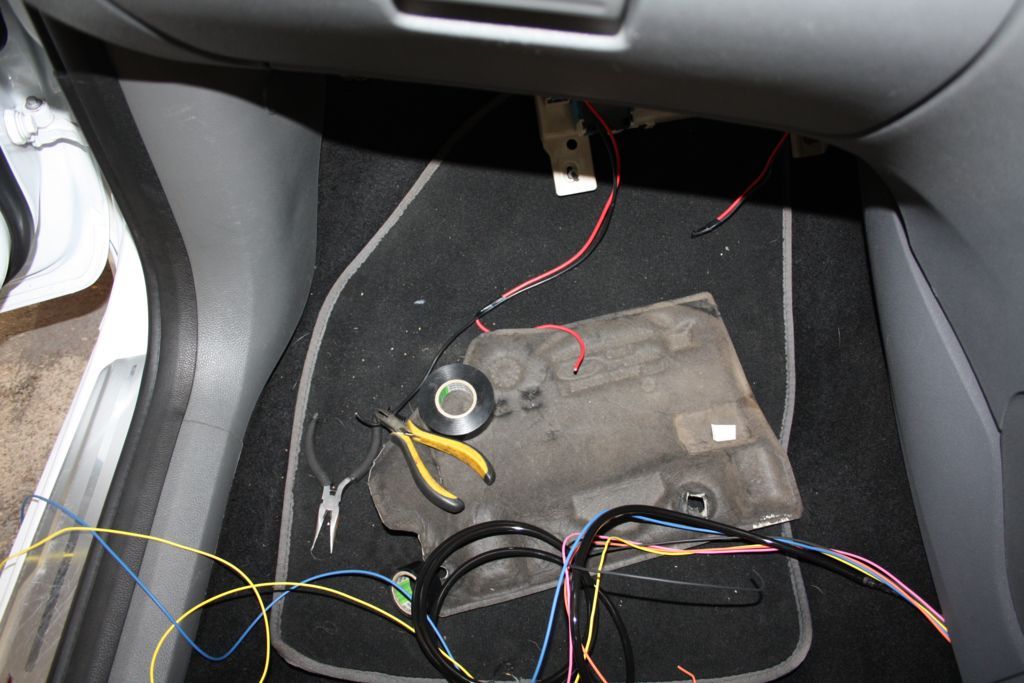

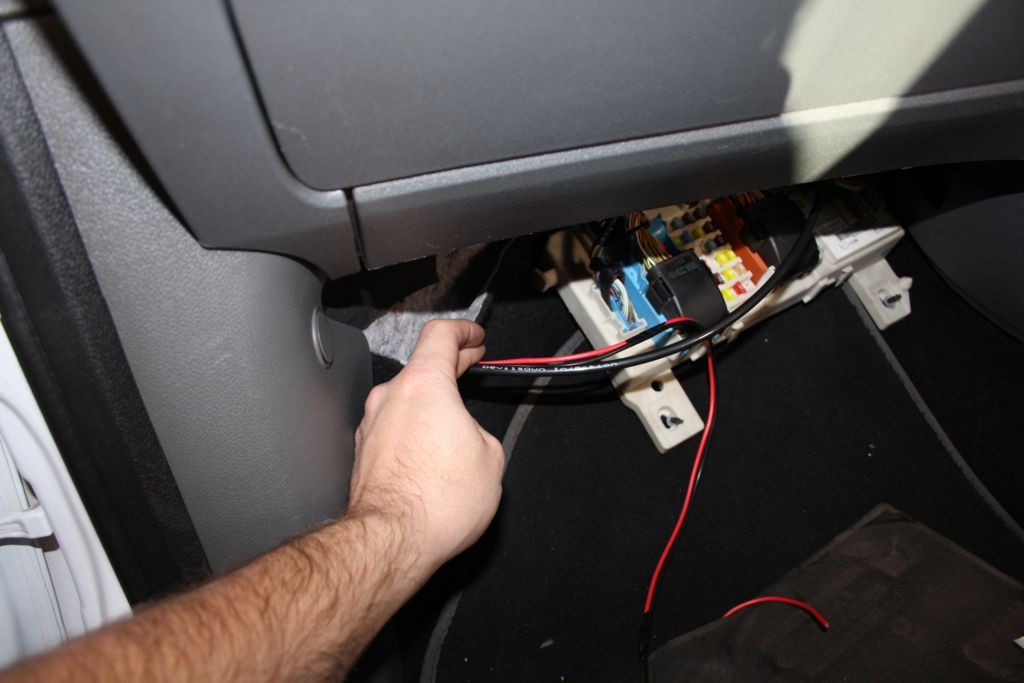

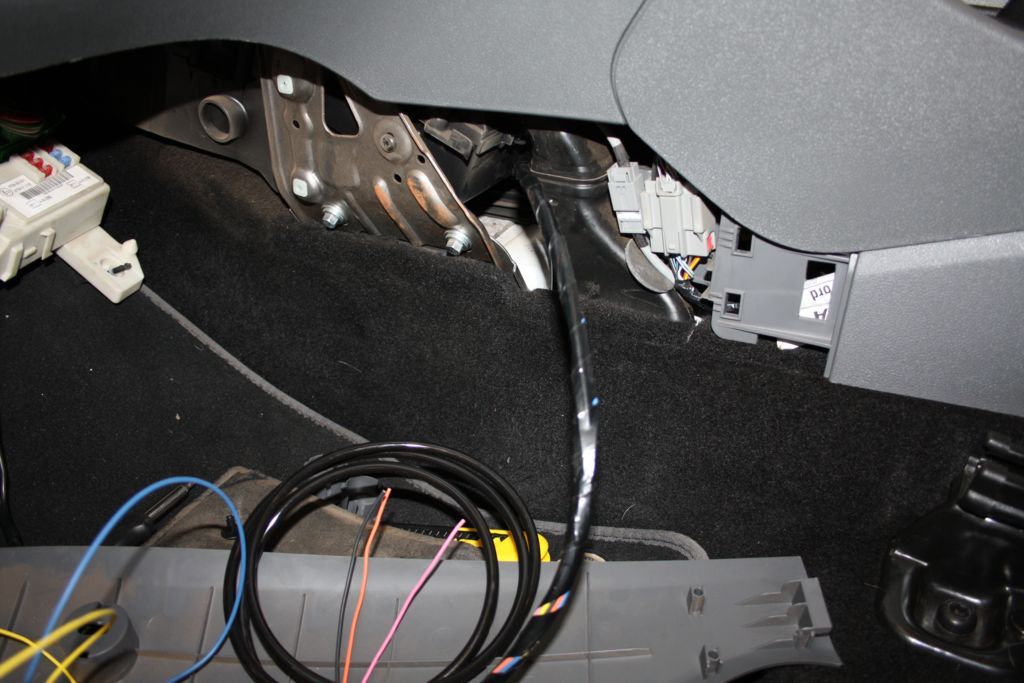

Under the dash Devilsown WMI Nylon Pipe and wiring

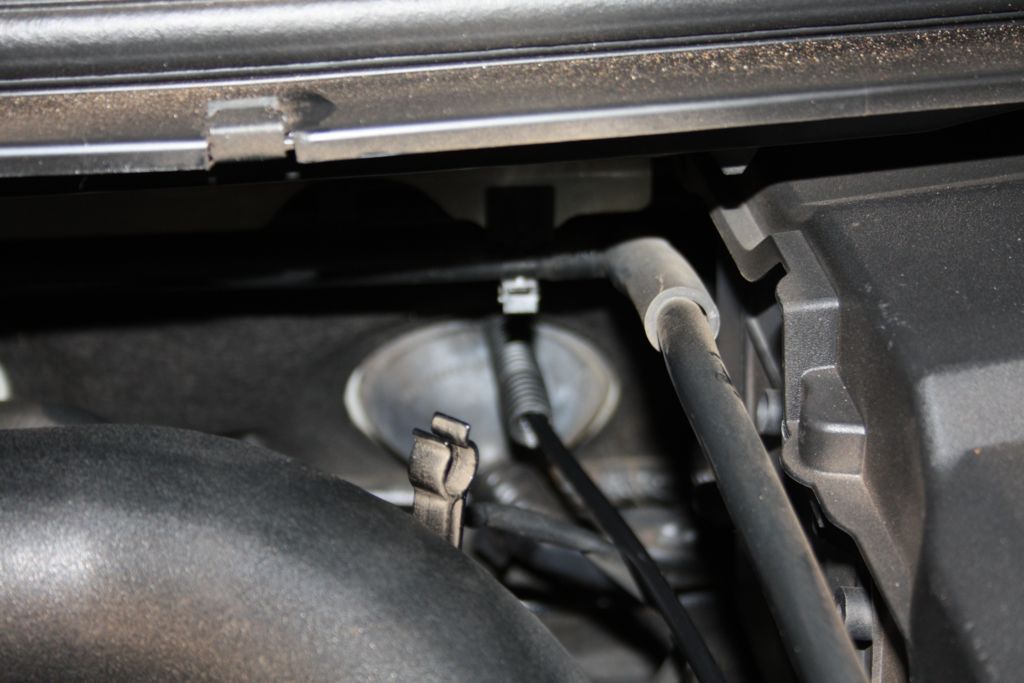

In the engine bay all I did was use a rigid plastic pipe and push down on the rubber grommet leading into the interior
I fed the Devilsown WMI Nylon pipe through that with the power wires to the Battery Terminals
Also needing to be fed through is the vaccum/ boost line for the Devilsown DVC30 Controller

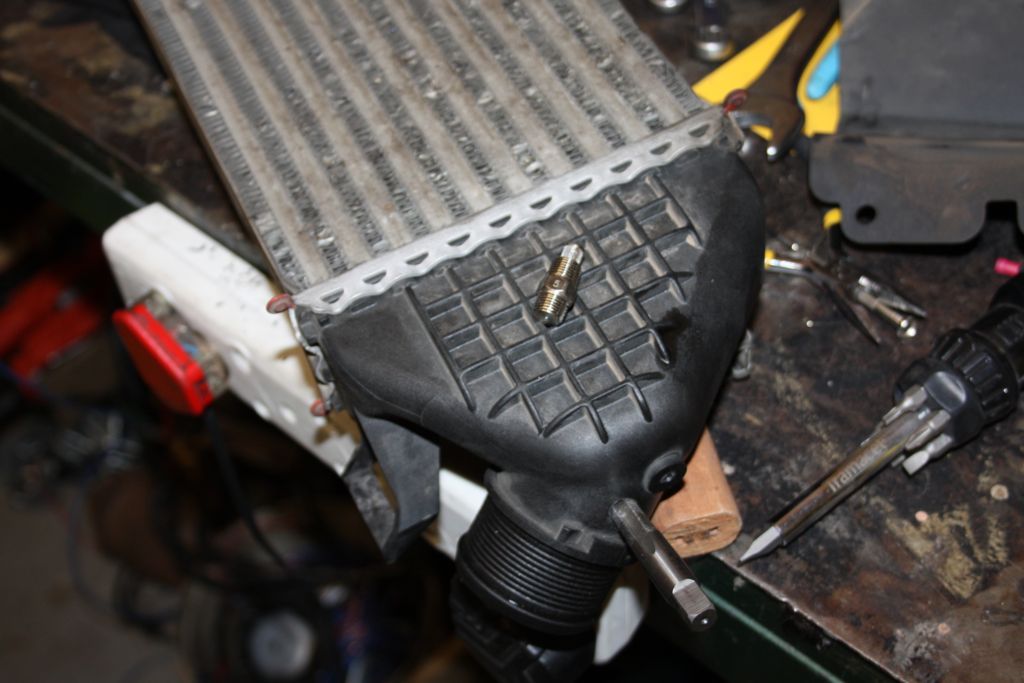

Tapping the thread for the Nozzle into the stock cooler.....plastic is something you tap slowly and start off small on a tampered/ Progressive Thread Tap

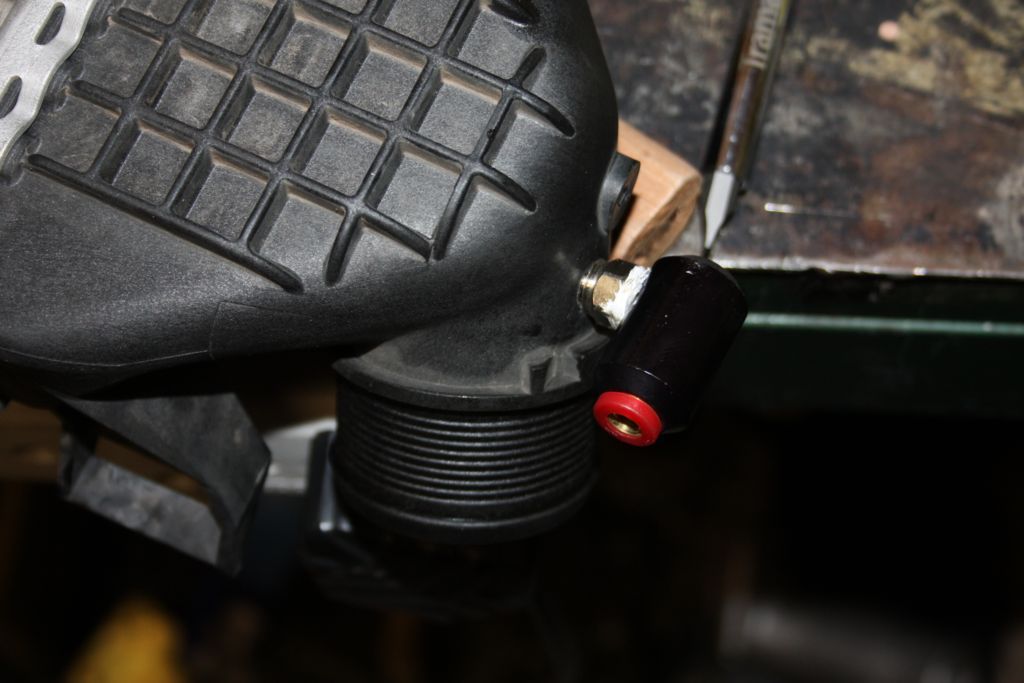

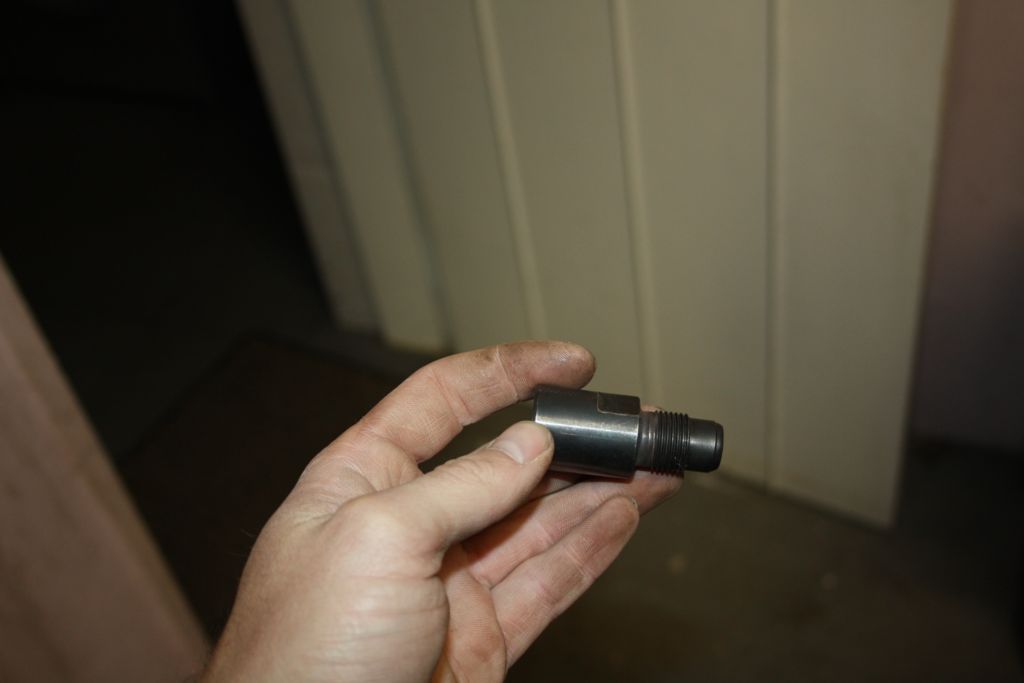

Nozzle and Nozzle holder in (I recommend using a bit of thread tape on the nozzles thread to prevent the possibility of leaking there)

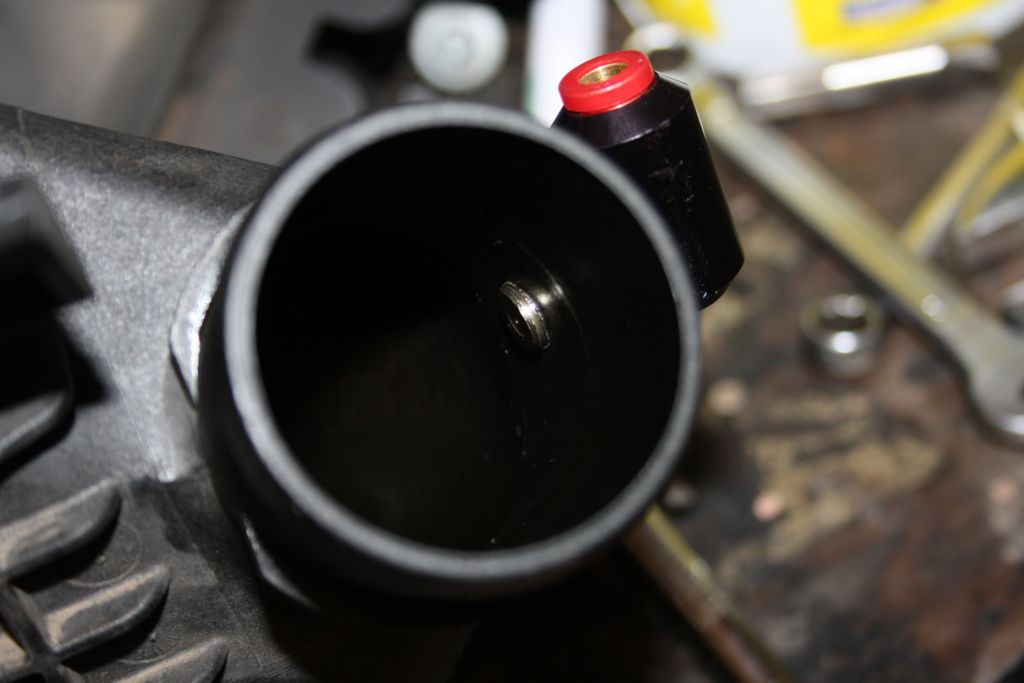

Inside the pipe (nozzle outlet side)

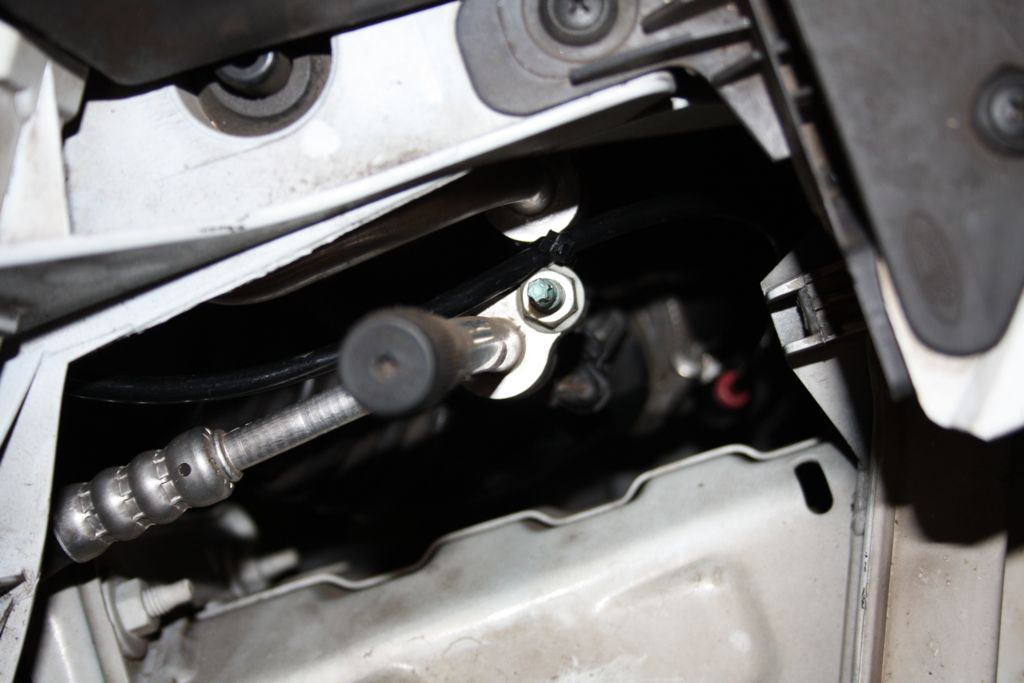

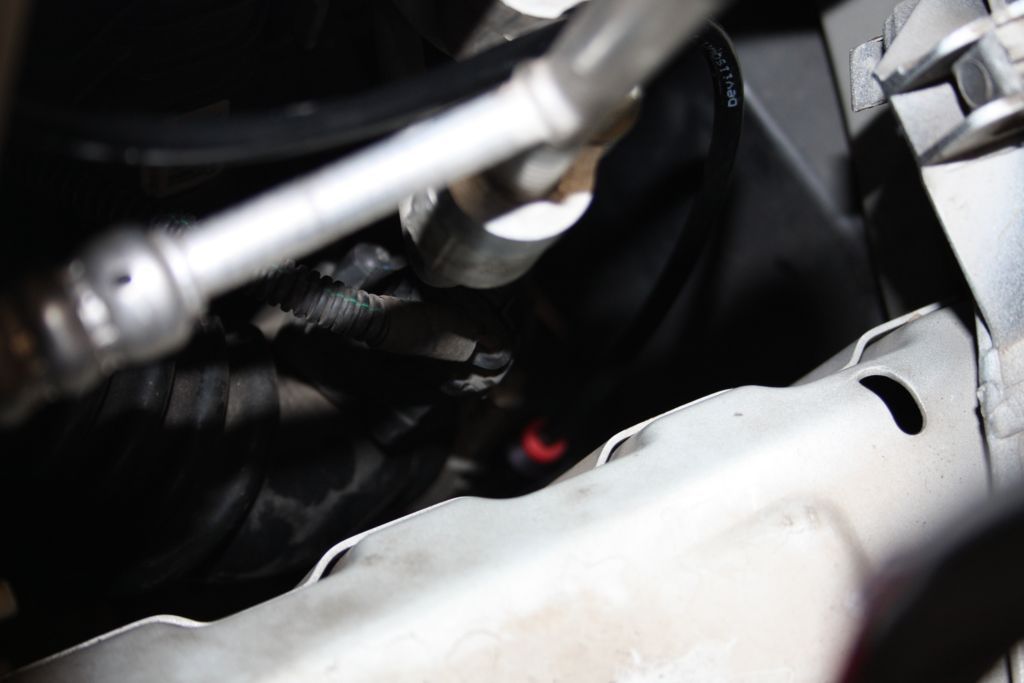

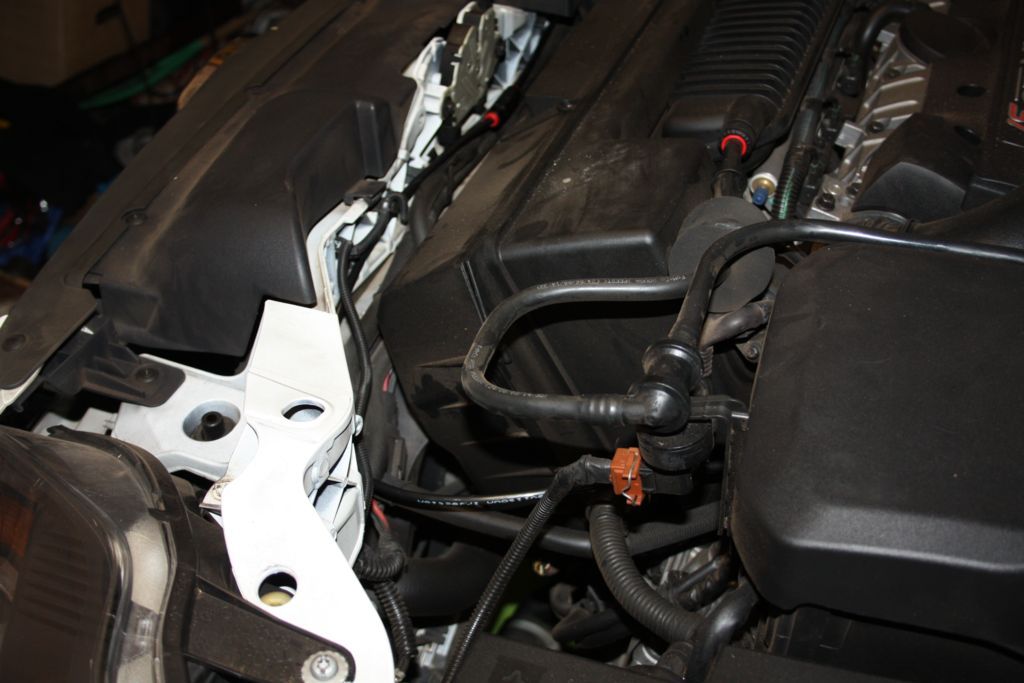

Routing the pipe in the engine bay to the nozzle

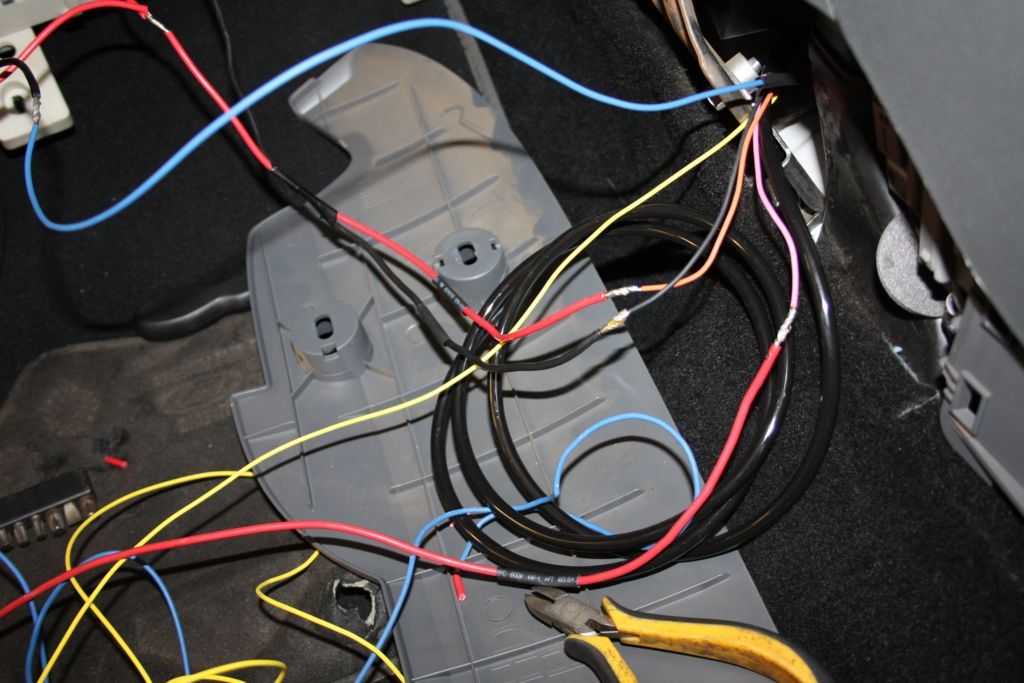

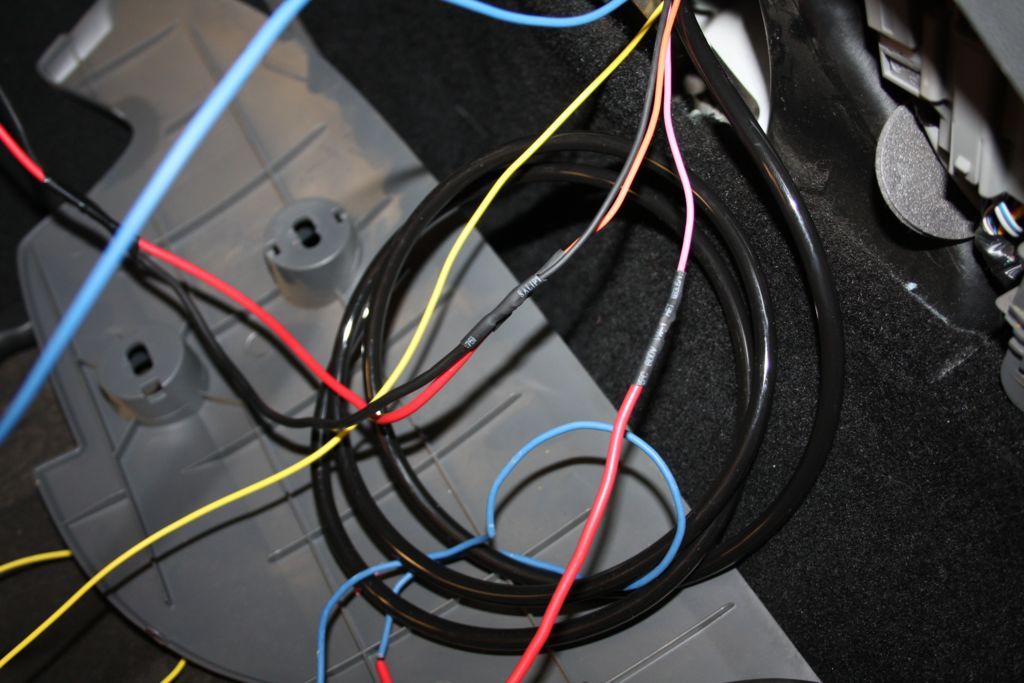

Wiring up of the controller
I pushed the wiring and controller through to the drivers side





For all your Performance Accessories visit:
Visit http://www.performanceproducts.co.za/
Performance Products SA

+
User avatar
Posts: 887
Joined: Sun Mar 27, 2011 8:19 pm
Location: Benoni, JHB
Make: Ford
Model: Focus
Type: White ST225
Year: 2009

Re: The Assault ST Project

Postby Umlungu » Sat Aug 24, 2013 9:04 pm

I see I have no pictures of the tank and pump in the boot, I will take a picture tomorrow and so everyone can see what it looks like.
Anyways, here is the power output on the car with the gains experienced after each mod.
The initial graph was done 4 days prior to the next two as I had to install the Downpipe/ Decat and WMI which was over a long weekend.
Obviously every dyno reads differently, this dyno at RBTS Racing does read a bit high (about 10kw more) compared to KAR for eg.

Quickly stating the gains
1st Graph(Run 1) : 156kw / 344.9NM
2nd Graph(Run 2) : 171kw / 352.0NM Power Gain with Downpipe/ Decat
3rd Graph(Run 3) : 184kw / 368.9NM Power Gain with Downpipe / Decat and Devilsown WMI

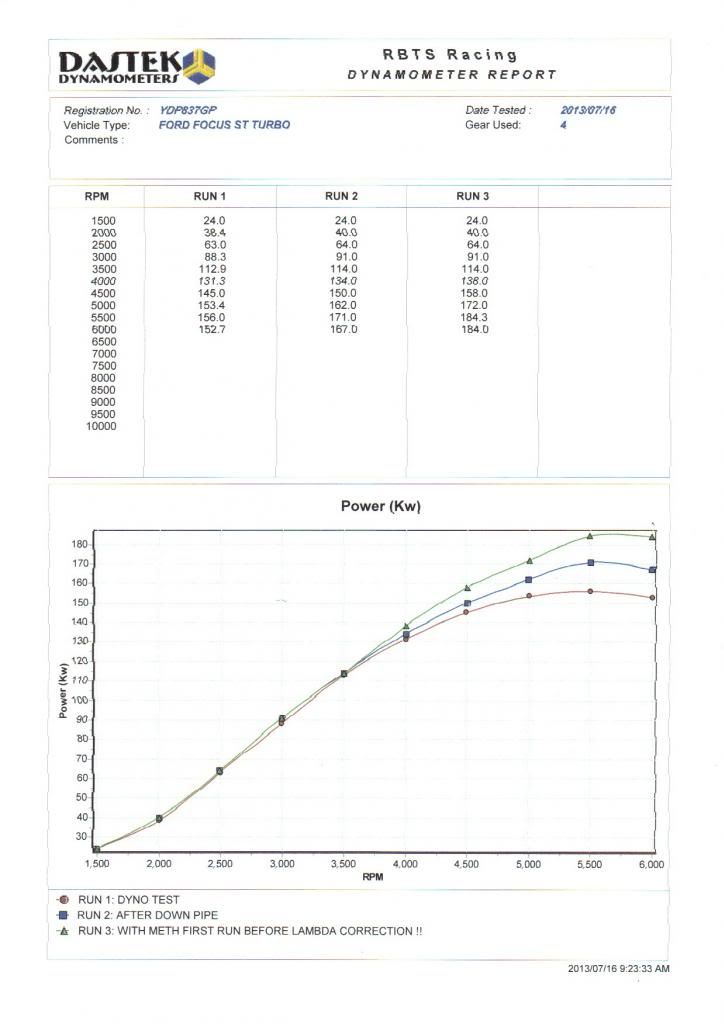

Power Graph

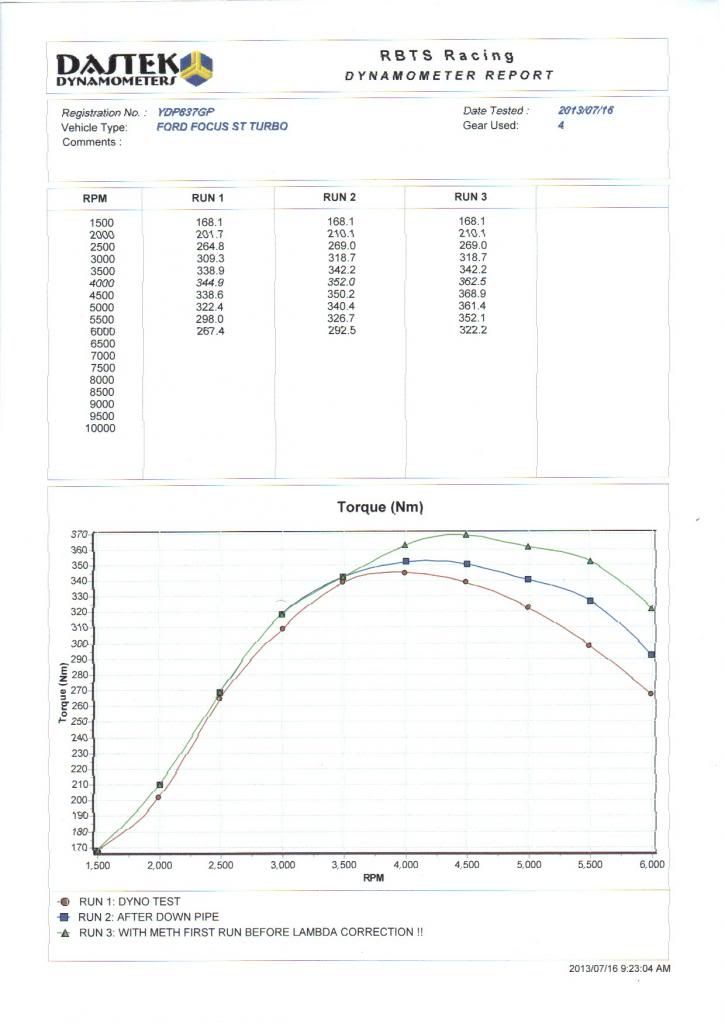

Torque Graph
For all your Performance Accessories visit:
Visit http://www.performanceproducts.co.za/
Performance Products SA

Ek Mod Alles!
User avatar
Posts: 8826
Joined: Sun Feb 25, 2007 7:32 pm
Location: Centurion
Make: Range Rover
Model: Evoque
Type: Dynamic
Year: 2013

Re: The Assault ST Project

Postby Bloubul7 » Wed Aug 28, 2013 8:44 pm

Nice project. Keep it coming.

Maybe as a help for the other ST owners please show where you tapped off for the ignition switch for the WMI
Playa25 wrote:he did nothing at first but when he side kicks started throwing punches from the side


Current - RR Evoque
2011 Bantam 1.6i
ex - Focus ST
Ford Fiesta
Mazda RX 8
Ford Fiesta ST

+
User avatar
Posts: 222
Joined: Mon Jul 08, 2013 12:35 pm
Location: Durban
Make: Ford
Model: Focus
Type: ST
Year: 2008

Re: The Assault ST Project

Postby Baxter ST » Thu Aug 29, 2013 7:32 am

Nice work bud. Keep it going.

How much does a WMI kit cost from you? And who would be able to install it properly in Durban?
Current: 2008 Focus ST



+
User avatar
Posts: 63513
Joined: Fri Apr 11, 2008 2:16 pm
Location: Centurion,PTA
Make: BMW
Model: 325i M Sport
Type: Auto/Steptronic
Year: 2011

Re: The Assault ST Project

Postby FaST&Furious » Thu Aug 29, 2013 8:23 am

:smt023 Good work man.

"Quote & Link Boss"
User avatar
Posts: 13293
Joined: Tue Apr 15, 2008 9:30 am
Location: PRETORIA
Make: Ford
Model: Focus
Type: ST 225
Year: 2009

Re: The Assault ST Project

Postby BigBear » Thu Aug 29, 2013 3:13 pm

Nice Work !
When you fitting the cooler :lol:

+
User avatar
Posts: 887
Joined: Sun Mar 27, 2011 8:19 pm
Location: Benoni, JHB
Make: Ford
Model: Focus
Type: White ST225
Year: 2009

Re: The Assault ST Project

Postby Umlungu » Sun Sep 08, 2013 4:17 pm

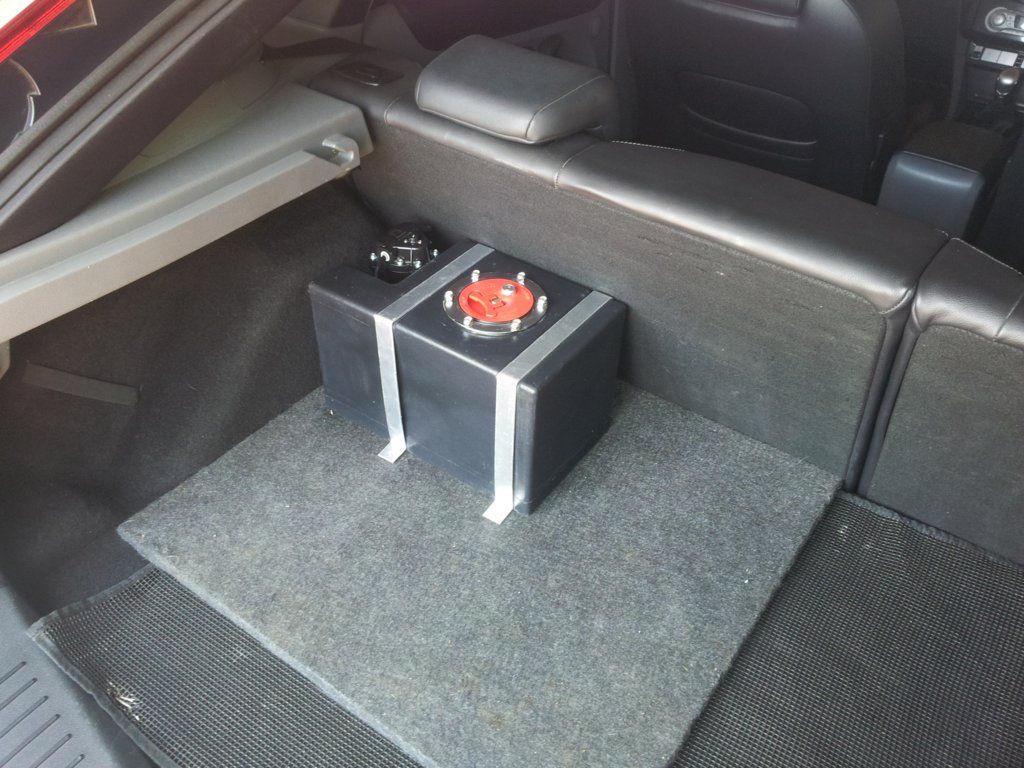

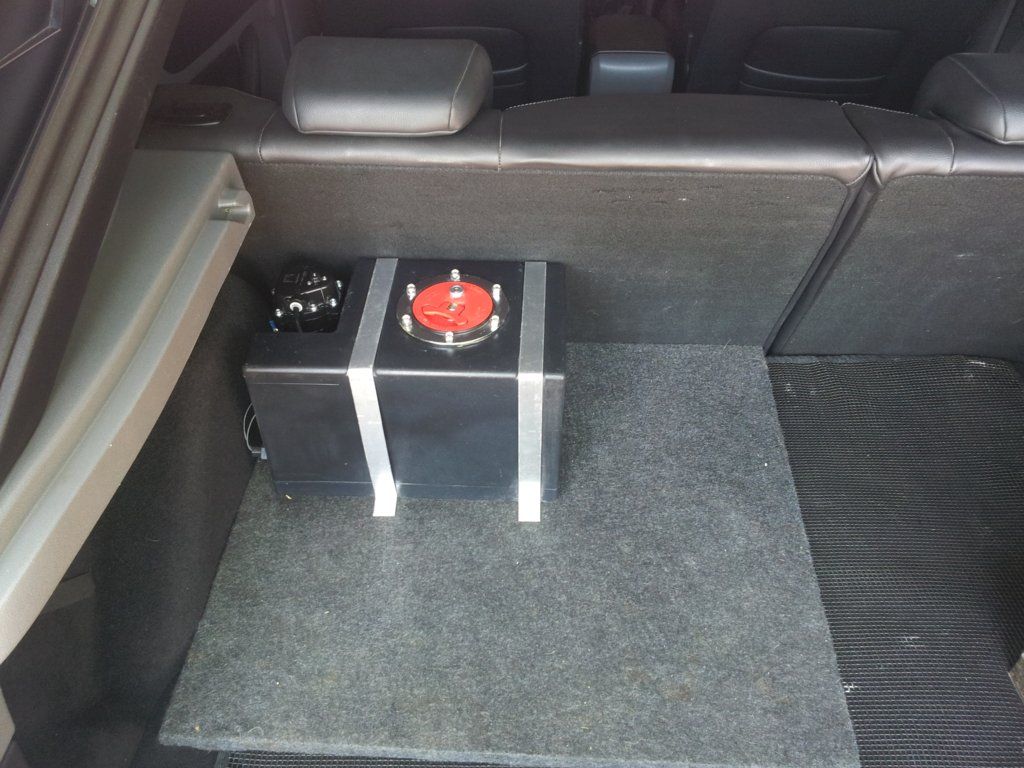

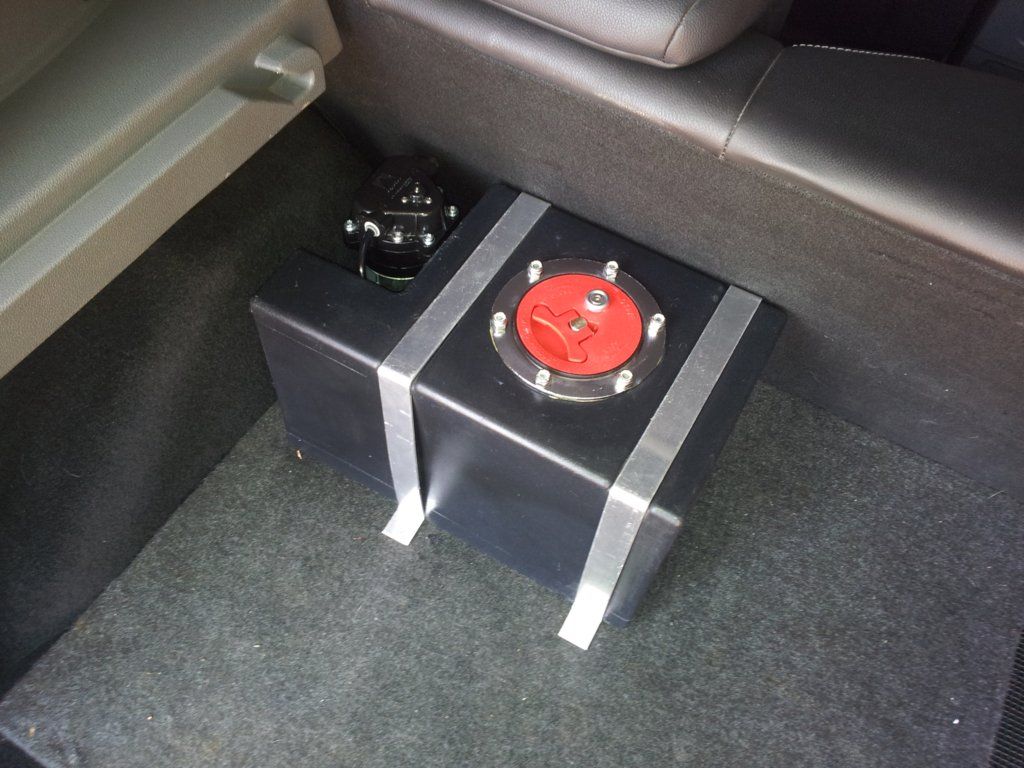

Here is a picture of the tank in the boot.
This is the 8.5L Race Tank, it runs out once every 2 weeks.
I mounted the tank on a piece of wood to prevent it from rolling when I drive like a knob.
This also allows for easy removal when I want to load the boot when going on holiday.
What I also like is that there is no permanent holes drilled into the body for mounting....
My car also backfires between gears when the system is on, no doubt this is normal when the car has software but mine is still stock.
For all your Performance Accessories visit:
Visit http://www.performanceproducts.co.za/
Performance Products SA
